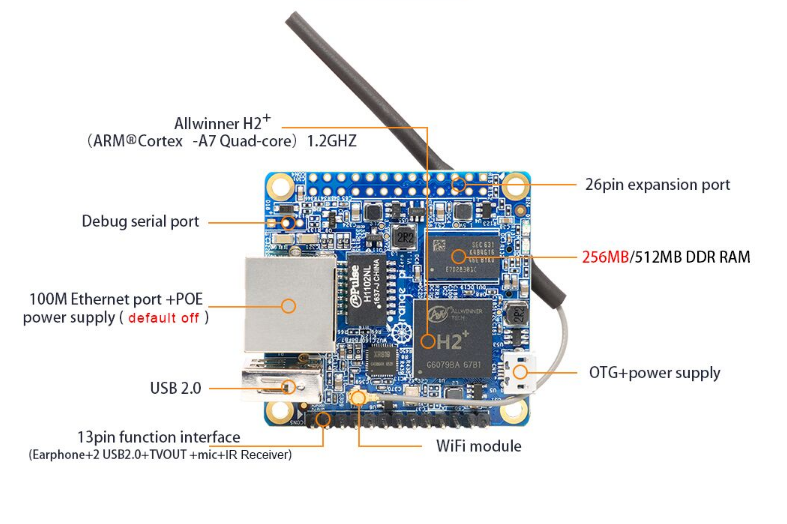

Orange Pi Zero 512MB WiFi
skladem
Hardware specification |
||
|
CPU |
H2 Quad-core Cortex-A7 H.265/HEVC 1080P. |
|
|
GPU |
·Mali400MP2 GPU @600MHz |
|
|
Memory (SDRAM) |
512MB DDR3 SDRAM(Shared with GPU) |
|
|
Onboard Storage |
TF card (Max. 64GB)/ NOR Flash(2MB Default not posted) |
|
|
Onboard Network |
10/100M Ethernet RJ45 POE is default off. |
|
|
Onboard WIFI |
XR819, IEEE 802.11 b/g/n |
|
|
Audio Input |
MIC |
|
|
Video Outputs |
Supports external board via 13pins |
|
|
Power Source |
USB OTG can supply power |
|
|
USB 2.0 Ports |
Only One USB 2.0 HOST, one USB 2.0 OTG |
|
|
Buttons |
|
|
|
Low-level peripherals |
26 Pins Header, compatible with Raspberry Pi B+
|
|
|
LED |
Power led & Status led |
|
|
Supported OS |
Android, Lubuntu, Debian, Raspbian |
|
Poznámka:
Tento výrobek není samostaně funkčním celkem a může vyžadovat odbornou montáž.
