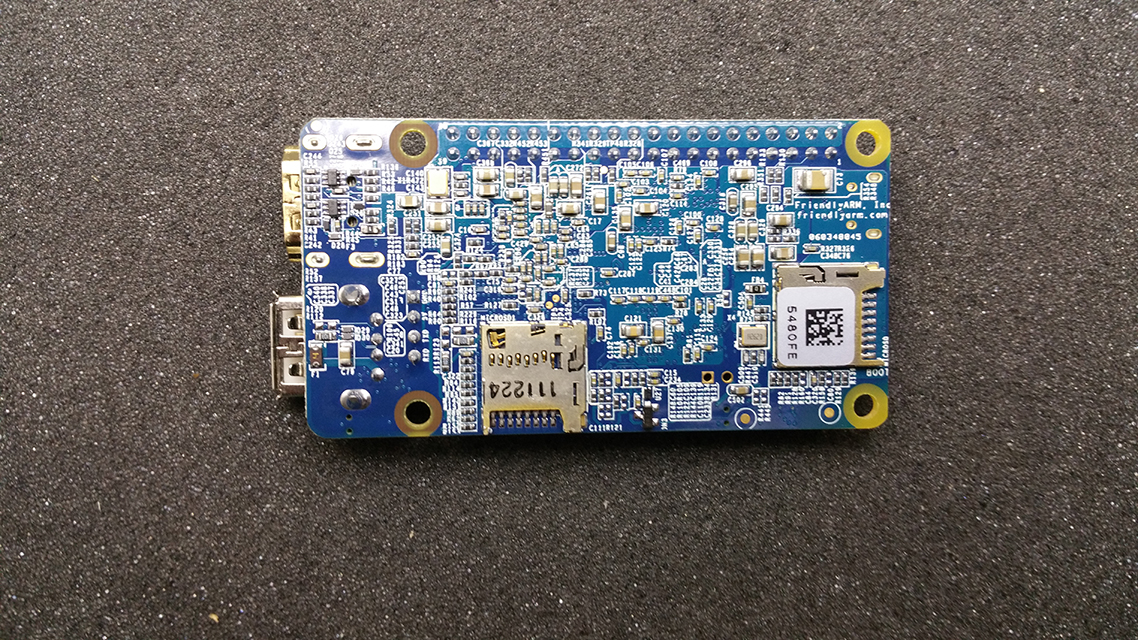

NanoPi2 1GB DDR3 Wifi BLE
skladem
-
- SoC: Samsung S5P 4418 Quad Core Cortex-A9, 1.4G Hz
- System Memory: 1GB 32bit DDR3 RAM
- Storage: 2 x Micro SD Slot
- Connectivity: AP6212 Wireless and Bluetooth, 802.11 b/g/n, AP mode, BLE 4.0, HS mode
- HDMI: 1 x HDMI 1.4A, Type-A
- LCD: 0.5 mm spacing 45 pin interface
- Camera: 0.5mm spacing 24 pin DVP interface
- GPIO: 40 pin GPIO pin header, compatible with Raspberry Pi’s GPIO pin header
- Debug Serial Port/UART0: 2.5 mm spacing 4pin interface
- USB: 1 x USB 2.0 host Type-A; 1 x Micro USB for data transmission and power input
- OS: Android and Debian
- PCB: Six-layer
- Dimension: 75 x 40 mm
- Weight: 22 g
Poznámka:
Tento výrobek není samostaně funkčním celkem a může vyžadovat odbornou montáž.
